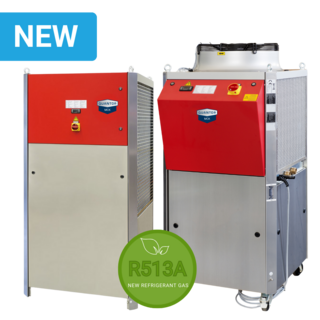

Quantor Coming soon! Water Chiller MCK R513A Fixed Cooling Unit - Cooling and Heating

15,0 - 38,6 kW

  • Highly efficient and powerful
  • Cooling and heating
  • In various sizes from 15.0 kW to 38.6 kW

Description

The MCK stainless steel water chiller feature a cooling unit in the upper section and a cooling water circuit in the lower section, which includes a stainless steel water tank with level indicator, a centrifugal pump with dry-run protection, and insulated piping. These components are mounted on a base frame with easily removable side panels, and the fans are positioned at the top. This design ensures easy access to all components,  making on-site maintenance significantly easier.



The cooling unit itself is equipped with a highly efficient micro-channel condenser and a powerful plate heat exchanger. To ensure maximum  efficiency, the new generation of MCK units uses the R513A refrigerant, which has a low Global Warming Potential (GWP). This design increases the overall performance of the units and ensures compliance with the Ecodesign Directive on energy efficiency. In addition, all units are equipped with an integrated electric heating element. The newly developed flow sensor further reduces your operating electricity costs, as the pump automatically switches off when no cooling is required.



The water chillers MCK are available in five different sizes, the range of performance is between 15,0 and 38,6 kW. Larger units with higher capacities and units with different voltages for various countries are built to order. With this wide range, the MCK series present the ideal all-in- one-solution for medium sizes operations, which require heating as well as cooling, and for which compact build, simple installation and high quality are of value.



Characteristics

  • Cooling water temperature range from -10°C to +40°C (from 14°F to 104°F)
  • Ambient temperature range from +10°C to +32°C (from 50°F to 89,6°F)
  • Stainless steel frame with painted front board
  • High-efficiency micro-channel condenser
  • High-performance plate-heat-exchanger
  • Integrated electric heating rod

Technical Data

  • Available in five sizes: MCK 141 / 181 / 221 / 271 / 321
  • Cooling capacity: 15,0 - 38,6 kW (20,12 - 51,76 HP)
  • Refrigerant: R513A
  • Electric connections: 400V/3Ph/50Hz (other options by inquiry)

Downloads

Applicable industries

  • Breweries
  • Wine Production
  • Cider Production
  • Distilleries

AMBIENT TEMPERATURE RANGE

from +10°C to +32°C (from 50°F to 89,6°F)

WATER TEMPERATURE RANGE

from -10°C to +40°C (from 14°F to 104°F)

Applications

  • Cooling and heating of must, wine, beer and other liquids such as cider, carbonated soft-drinks, distillates etc.
  • Fermentation temperature control
  • Tartaric stabilisation of wines and biological reduction of acids
  • Cool storage of wine until bottling
  • Maturation of young beer
  • Cooling and stabilisation of distillates
  • Room temperating of halls and storage rooms - only possible with additional fan coils
