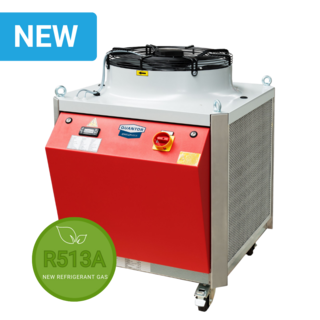

Quantor NEW! Water Chiller Chilly MAX R513A Compact Cooling Unit - Cooling and Heating

6,4 - 12,7 kW

  • High-efficiency micro-channel condenser
  • Mobile unit on wheels
  • Stainless steel housing
  • For low medium supply temperature up to -10 °C

Description

The Chilly MAX unit has a compact design. It takes little space and is very easy to install and to start-up. The units are mobile on wheels.


The mobile systems in the Chilly MAX range are characterized above all by their compact design and simple installation. Micro-channel condensers, plate heat exchangers and the refrigerant R513a with a low GWP value are used for maximum efficiency. The Chilly MAX is equipped with a cooling water circuit including stainless steel water tank with level indicator, centrifugal pump with dry-running protection and insulated piping.  The appliances also have an electric heating element integrated in the water tank to enable containers to be heated. Thanks to the low medium flow temperature of down to -10°C, the Chilly MAX is also suitable for applications in the beer sector or for tartar stabilization.


The Chilly MAX is available in three sizes and capacities from 6,4 kW – 12,7 kW. It is the optimal solution for small to medium-size wineries, breweries, cideries, etc. that mainly wish to cool but that also need to heat their products from time to time.

Characteristics

  • Cooling water temperature range from -10°C to +40°C (from 14°F to 104°F)*
    (* -10°C possible at ambient temperatures up to max. +32°C (up to max. 89,6°F)
  • Ambient temperature range from +10°C to +40°C (from 50°F to 104°F)
  • Unit mobile on wheels
  • Highly efficient micro-channel condenser

Technical Data

  • Available in three models: Chilly MAX 50 / Chilly MAX 90 / Chilly MAX 110
  • Cooling capacity: 6,4 - 12,7 kW (8,58 - 17,03 HP)
  • Refrigerant: R513A
  • Electric connection: 400V/3Ph/50Hz (other options by inquiry)
  • Water inlet / outlet connection: 3/4" (female)


Downloads

Applicable industries

  • Breweries
  • Wine Production
  • Cider Production
  • Distilleries

WATER TEMPERATURE RANGE

from -10°C to +40°C (from 14°F to 104°F)*

(* -10°C possible at ambient temperatures up to max. +32°C (up to max. 89,6°F)

AMBIENT TEMPERATURE RANGE

from +10°C to +40°C (from 50°F to 104°F)

Applications

  • Cooling and heating of must, wine, beer and other liquids such as cider, carbonated soft-drinks, distillates etc.
  • Fermentation temperature control
  • Tartaric stabilisation of wines and biological reduction of acids
  • Cool storage of wine until bottling
  • Maturation of young beer
  • Cooling and stabilisation of distillates
  • Room temperating of halls and storage rooms - only possible with additional fan coils
