Description

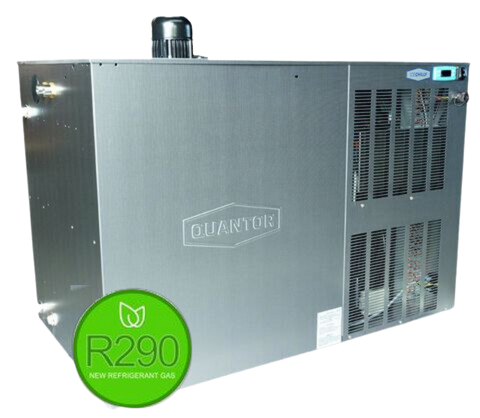

The compact cooling unit IceChilly, made of stainless steel, is an ideal solution for micro-breweries, hobby brewers and smaller wineries who only need cooling for their applications.
The IceChilly is available in three sizes, with cooling capacities of 2,35 to 4,4 kW (3,15 to 5,90 HP). At 0°C (32°F) water temperature an ice-bank will be built around the tubes which provides an additional, stored cooling capacity. When used for flash-cooling, it boosts the capacity of the unit, giving a constant cooling temperature over a longer time period. An additional stainless steel coil for direct cooling of liquids can be integrated as an option, even afterwards. The IceChilly is able to cool water down to -6 °C using glycol.
Characteristics
- Cooling water temperature range from -6°C to +30°C (from 21,2°F to 86°F)
- Ambient temperatures from from +10°C to +32°C (from 50°F to 89,6°F)
- Two cooling circuits for increased system safety
- Ice-bank at 0°C water temperature
- Stainless steel coil for direct product cooling available as option
Technical Data
- Available in three models:
IceChilly 25 / IceChilly 35 / IceChilly 45 - Cooling capacity: 2,35 - 4,4 kW (3,15 - 5,90 HP)
- Refrigerant: R290
- Electric connection: 230V/1Ph/50Hz
- Water inlet / outlet: 3/4" AG
Applicable industries
- Breweries
- Wine Production
- Cider Production
- Distilleries
WATER TEMPERATURE RANGE
from -6°C to +30°C (from 21,2°F to 86°F)
AMBIENT TEMPERATURE RANGE
from +10°C to +32°C (from 50°F to 89,6°F)
Applications
- Passive cooling of fermentation and storage tanks
- Cooling of must and wine for pre-clearing and cristal stabilisation
- Cooling of rooms and storage halls - with additional fan coils
- With stainless steel coil (option): direct cooling of liquids (active cooling)
